Recora FSC-6 Failsafe Controllers

Request a Quote

Recora FSC-6 Failsafe Controllers

Design Principles

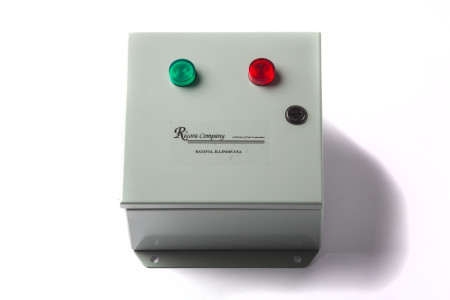

The Recora FSC-6 Failsafe Safety Mat Controller is designed as a complete, self-contained, mat controller suitable to use at all levels of risk mitigation requirements in industrial applications. The FSC-6 integrates a number of sophisticated safety design concepts to ensure the highest degree of safe operation along with the best possible protection for equipment and personnel. The FSC-6 is available in various configurations to match the appropriate level of protection to the potential risk without sacrificing productivity. Special control configurations available.

Risk Assignment
The level of safety protection required for a given application is based on the risk associated with that application. The risk associated with an operation is based on a number of factors that must be taken together and evaluated in total to establish the risk level for any equipment or operation.

Item#	Item Name	Size	Contact Type	Contact Material	Mechanical Lifetime	Rated Voltage
FSC-6-R	DIN Rail Relay	1.75 x 3 x 4.75 in	Forced Contact	Ag-Alloy, Gold-plated	10 x 10^6 Switching Cycles	120 V
FSC-6-1Z	1 Zone Failsafe Controllers	8 x 8 x 4 in	Forced Contact	Ag-Alloy, Gold-plated	10 x 10^6 Switching Cycles	120 V
FSC-6-2Z	2 Zone Failsafe Controllers	10 x 8 x 6 in	Forced Contact	Ag-Alloy, Gold-plated	10 x 10^6 Switching Cycles	120 V
FSC-6-3Z	3 Zone Failsafe Controllers	14 x 8 x 6 in	Forced Contact	Ag-Alloy, Gold-plated	10 x 10^6 Switching Cycles	120 V
FSC-6-4Z	4 Zone Failsafe Controllers	14 x 8 x 6 in	Forced Contact	Ag-Alloy, Gold-plated	10 x 10^6 Switching Cycles	120 V
